Siemens HydroRanger 200 / HydroRanger 200 HMI

  • Choice of Mounting Options Wall or panel mount options

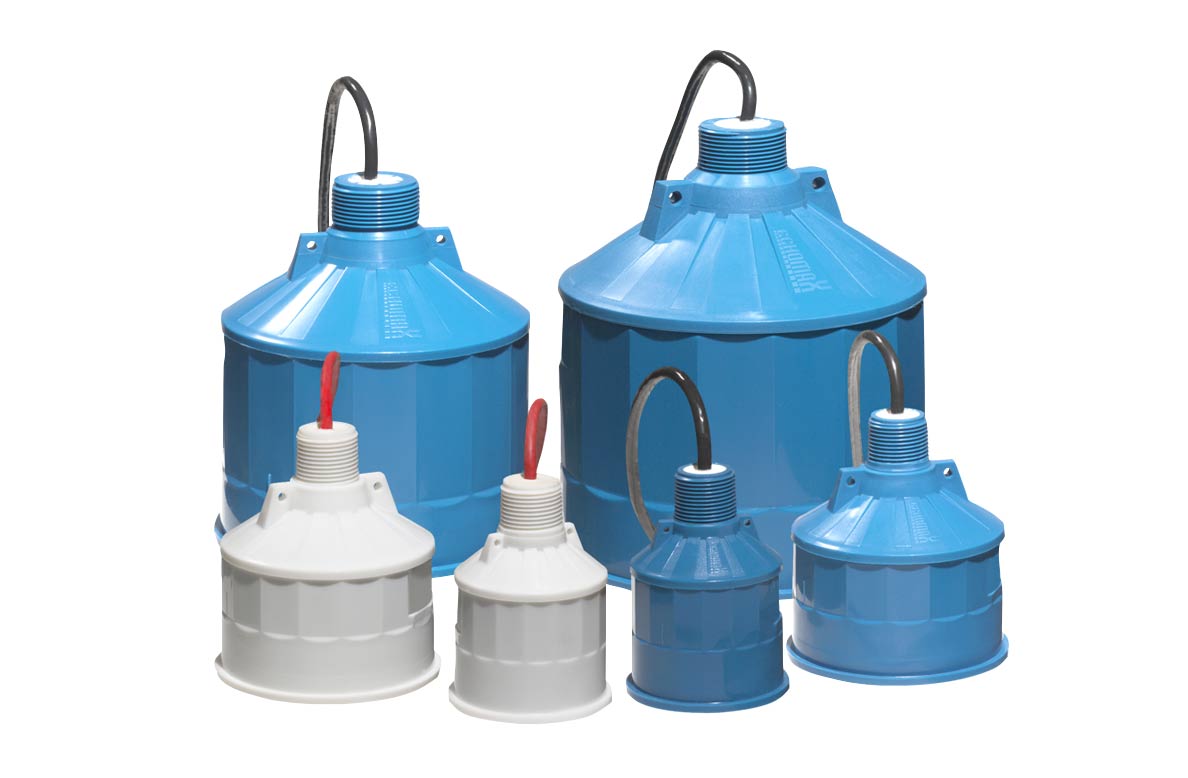

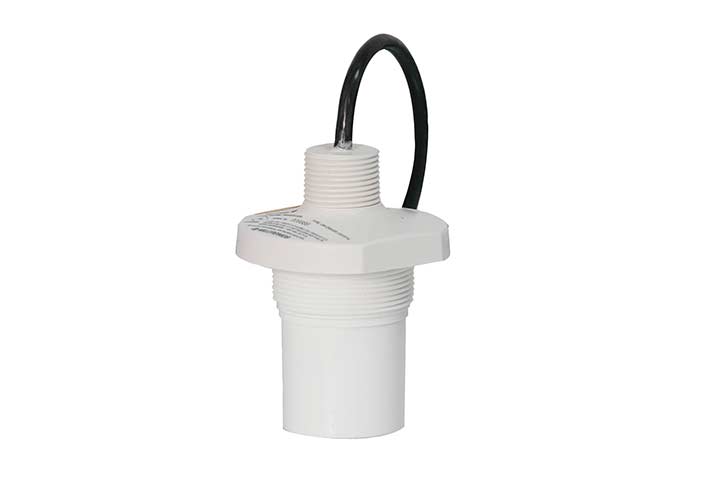

  • Compatibility Compatible with Echomax XRS-5, ST-H, XPS-10, XPS-15, XCT-8, XCT-12 transducers
  • Accurate (MCERTS-certified) Achievable resolution is 0.1% with accuracy to 0.25% of range
  • Non-Contact Device HydroRanger 200 is immune to problems caused by harsh corrosives, suspended solids or silt
Product Options

Overview

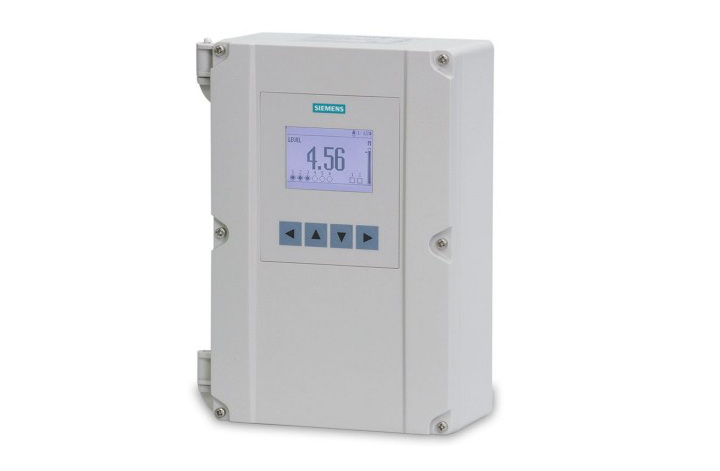

The NEW Siemens HydroRanger 200 HMI is also available from RS Hydro. The HydroRanger 200 HMI has all the features of the HydroRanger 200 with the added bonus of an easy to use HMI display with local four-button programming, menu-driven parameters, and Wizard support for key applications.

Siemens HydroRanger 200 is an ultrasonic level controller for up to six pumps, and provides control, differential control, and open channel flow monitoring (MCERTS).

For water authorities, water and wastewater treatment works, HydroRanger 200 is an economical, low-maintenance solution delivering control efficiency and productivity needed to meet todays exacting standards. It offers single- or dual-point monitoring with 6 relays standard, as well as digital communications with built-in Modbus RTU via RS-485.

Siemens HydroRanger 200 is compatible with SIMATIC PDM, allowing for PC configuration and set-up. Sonic Intelligence advanced echo-processing software provides increased reading reliability.

HydroRanger 200 uses proven continuous ultrasonic echo ranging technology to monitor water and wastewater of any consistency up to 15 m (50 ft) in depth. Achievable resolution is 0.1% with accuracy to 0.25% of range. Unlike contacting devices, HydroRanger 200 is immune to problems caused by suspended solids, harsh corrosives, grease or silt in the effluent, reducing downtime.

The HydroRanger 200 is available in wall or panel mounting versions.

  • Monitors wet wells, weirs and flumes
  • Digital communications with built-in Modbus RTU via RS-485
  • Compatible with SmartLinx system and SIMATIC PDM configuration software
  • Single or dual point level monitoring
  • 6 relays standard
  • Anti-grease ring / tide mark build-up
  • Differential amplifier transceiver for common mode noise rejection and improved signal-to-noise ratio
  • Wall and panel mounting options


Note: The HydroRanger 200 is available in both Siemens and Milltronics brands. Support documentation for both brands can be found using the More Info links on the right side of this page.

A reliable, continuously monitoring level transducer for general applications.

  • 8m level measurement range (max)
  • IP68 (fully submersible)
  • Easy installation

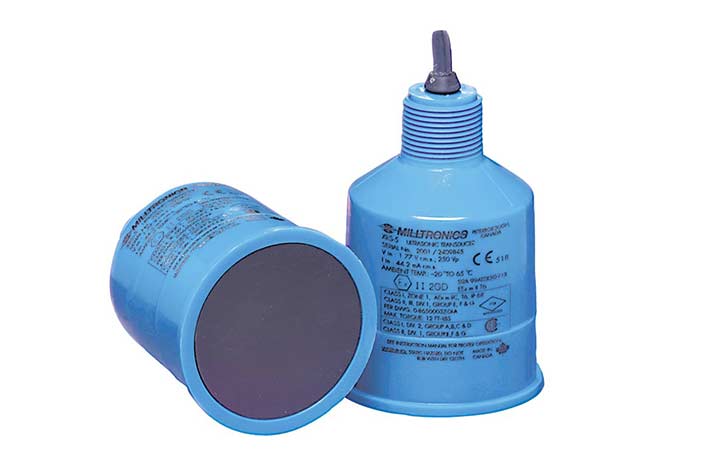

With a beam angle of just 10° and a Hypalon rubber face, the Echomax XRS-5 provides reliable, continuous level monitoring in narrow lift stations/wet wells, flumes, weirs and filter beds. It is non-contacting with an effective measurement range from 0.3 to 8 m (1 to 26.2 ft.) on liquids and slurries. Advanced echo processing ensures reliable data in conditions with obstructions, turbulence and foam.

The pre-moulded, sealed rubber face and Kynar Flex housing are designed for maximum resistance to methane, salt water, caustics and harsh chemicals common to wastewater installations. With an IP 68 ingress protection rating, this rugged transducer is fully submersible in the event of flood conditions.

The low cost XRS-5 transducer is compatible with a full range of Milltronics transceivers, from a basic system for high/low alarm or dual pump control, up to an advanced control system with communications, telemetry and SCADA integration capabilities

  • 10? angle for narrow applications
  • Chemically resistant Kynar Flex? housing Hypalon rubber face construction
  • 8m (26.2 ft.) level measurement range (max.)
  • Fully submersibleIP 68 rating
  • Easy installation with 1" NPT or BSP connection

MCERTS

The Siemens HydroRanger 200 is now MCERTS certified meeting the Environment Agency's performance requirements. View downloads for certificate.

Manufactured by: Siemens-Milltronics
Model: Siemens HydroRanger 200 / HydroRanger 200 HMI

Services offered for this product

  • Sales
  • Rental
  • Installation
  • Calibration
  • Maintenance

Applications

Process level measurement of liquids/solids
Wet wells
Flow measurement: flumes/weirs
Bar screen control
MCERTS applications

Specification

Range 0.3 to 15 m (1 to 50 ft)
Compatible Transducers XRS-5, ST-H, XPS-10, XPS-15, XCT-8, XCT-12
Output Six relays standard
Two 4 to 20 mA outputs (isolated)
One or three relays optional, single channel level reading only
