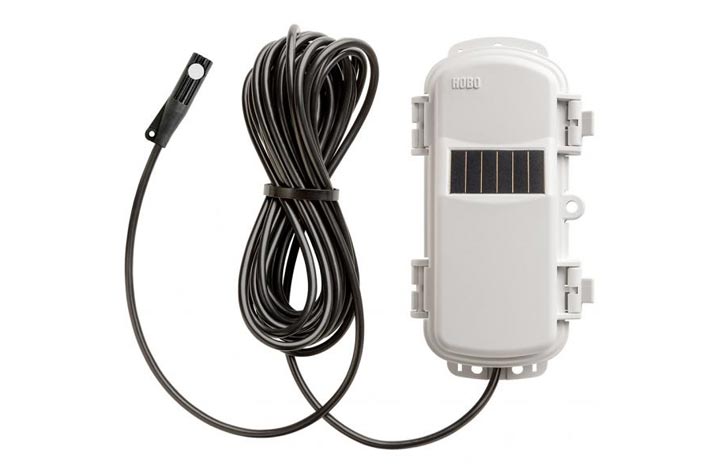

HOBOnet Temp/RH Sensor

Product Options
NO-OPERATING-FREQUENCY-SELECTED

Overview

The HOBOnet Wireless Temperature and Relative Humidity Sensor provides a cost-effective and scalable solution for web-enabled monitoring of air temperature and humidity. HOBOnet Wireless Sensors communicate data directly to the HOBO RX3000 or the HOBO MicroRX station, or pass data through other wireless sensors back to the central station. They are preconfigured and ready to deploy, and data is accessed through HOBOlink, Onset’s innovative cloud-based software platform.

Manufactured by: Onset
Model: HOBOnet Temp/RH Sensor

Services offered for this product

  • Sales
  • Rental
  • Installation
  • Calibration
  • Maintenance

Applications

Dew point
Evapotranspiration
Relative humidity
Temperature

Specification

Sensor
  Temperature RH
Measurement Range -40°C to 75°C (-40°F to 167°F) 0–100% RH at -40° to 75°C (-40° to 167°F); exposure to conditions below -20°C (-4°F) or above 95%
RH may temporarily increase the maximum RH sensor error by an additional 1%
Accuracy ±0.25°C from -40° to 0°C (±0.45°F from -40° to 32°F)
±0.20°C from 0° to 70°C (±0.36°F from 32° to 158°F)
±0.25°C from 70° to 100°C (±0.45°F from 158° to 212°F)
±2.5% from 10% to 90% RH typical to a maximum of ±3.5% including hysteresis at 25°C (77°F);
below 10% and above 90% ±5% typical
Resolution 0.02°C (0.036°F) 0.01% RH
Drift <0.01°C (0.018°F) per year <1% per year typical
Response Time (typical, to 90% of change) Without solar radiation shield: 3 minutes,
45 seconds in air moving 1 m/sec
With RS3-B solar radiation shield: 6 minutes, 30 seconds in air moving 1 m/sec
Without solar radiation shield: 15 seconds in air moving 1 m/sec
With RS3-B solar radiation shield: 30 seconds in air moving 1 m/sec
Wireless Mote
Operating Temperature Range -25° to 60°C (-13° to 140°F) with rechargeable batteries
-40 to 70°C (-40 to 158°F) with lithium batteries
Radio Power 12.6 mW (+11 dBm) non-adjustable
Transmission Range Reliable connection to 457.2 m (1,500 ft) line of sight at 1.8 m (6 ft) high
Reliable connection to 609.6 m (2,000 ft) line of sight at 3 m (10 ft) high
Wireless Data Standard IEEE 802.15.4
Radio Operating Frequencies RXW-THC-900: 904–924 MHz
RXW-THC-868: 866.5 MHz
RXW-THC-921: 921 MHz
RXW-THC-922: 916–924 MHz
Modulation Employed OQPSK (Offset Quadrature Phase Shift Keying)
Data Rate Up to 250 kbps, non-adjustable
Duty Cycle <1%
Maximum Number of Motes Up to 50 wireless sensors or 336 data channels per one HOBO RX station
Logging Rate 1 minute to 18 hours
Number of Data Channels 3
Battery Type/ Power Source Two AA 1.2 V rechargeable NiMH batteries powered by built-in solar panel or two AA 1.5 V lithium batteries for operating conditions of -40 to 70°C (-40 to 158°F)
Battery Life With NiMH batteries: Typical 3–5 years when operated in the temperature range -20° to 40°C (-4°F to 104°F) and positioned toward the sun (see Deployment and Mounting), operation outside this range will reduce the battery service life
With lithium batteries: 1 year, typical use
Memory 16 MB
Dimensions Sensor: 5.1 x 33 mm (0.2 x 1.3 inches)
Cable length: 2 m (6.56 ft)
Mote: 16.2 x 8.59 x 4.14 cm (6.38 x 3.38 x 1.63 inches)
Weight Sensor and cable: 110 g (3.88 oz);
Mote: 223 g (7.87 oz)
Materials Sensor: Polyamide
Mote: PCPBT, silicone rubber seal
Environmental Rating Sensor: Weatherproof: 0 to 100% RH intermittent condensing environments. For best results, the sensor should be mounted inside a protective enclosure, such as a solar radiation shield. Mote: IP67, NEMA
