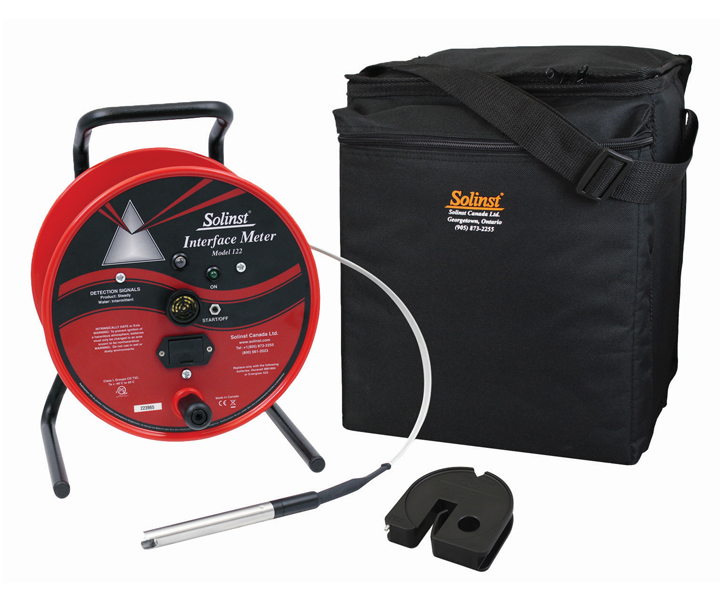

Solinst Model 122 Oil Water Interface Meter

  • Next Day Delivery Available* *Available next day - mainland UK if paperwork is received by 12 midday (stock permitting)
  • Rugged with laser marked flat PVDF tape to 300m Replaceable probe design.
  • Ideal for LNAPL, DNAPL & Hydrocarbon Detection
  • Mini Interface Meter available (122M)
  • ATEX Certified
Product Options
Carry Case Required
114816

Overview

Solinst Oil/Water Interface Meters give clear and accurate measurements of product level and thickness in wells and tanks. Determination of both light (floating) non-aqueous phase liquids (LNAPL) and dense (sinking) non-aqueous phase liquids (DNAPL) is quick and easy. The factory-sealed probe is pressure proof (up to 500 psi) and tapes are available in a range of lengths from 30 – 300 m (100 – 1000 ft).

The 16 mm (5/8") diameter probe allows easy access through tight spaces and into narrow wells. The probe is designed for use in various monitoring applications. 122M Mini Interface Meters also available, see 122M Data Sheet for more information.

Hazardous Locations Use

Model 122 Interface Meters have been approved for use in explosive environments. They are suitable for use in hazardous locations Class I, Div 1, Groups C&D based on standards of the Canadian Standards Association (CSA).

The Model 122 Interface Meter with laser marked tape is now ATEX certified under directive 94/9/EC, as II 3 G Ex ic IIB T4 Gc.

The grounding strap is a safety essential when the meter is used in potentially explosive environments

P8 Probe

The 122 Interface Meter uses the P8 Probe, which is 16 mm (5/8") in diameter and stainless steel. It is pressure proof, up to 500 psi. The beam is emitted from within a Hydex cone-shaped tip. The tip is protected by an integral stainless steel shield, and is excellent for the vast majority of product monitoring situations.

Manufactured by: Solinst
Model: Solinst Model 122 Oil Water Interface Meter

Services offered for this product

  • Sales
  • Rental
  • Installation
  • Calibration
  • Maintenance

Applications

Identifying oil/product
Wastewater management/landfill
Well monitoring

Specification

Probes
122 P8 5/8” diameter (16 mm) stainless steel. The beam is emitted from within a Hydex cone-shaped tip. It is pressure proof up to 500 psi. The tip is protected by an integral stainless steel shield. This probe is excellent for the vast majority of product monitoring situations.
122M Probe 5/8” diameter (16 mm) stainless steel. Similar to the P8 but shorter.
Tape The easy-to-read markings on the tape are permanently laser marker into the tape. The dog bone shaped tape avoids adherence to wet surfaces in wells. It is resistant to most chemicals, and the smooth surface of the tape is easy to decontaminate, and easy to handle.
LM2 Feet and tenths: with markings every 1/100ft.
LM3 Meters and centimetres: with markings every mm.

Downloads

Related products

FAQ's

The Model 122 will detect all types of DNAPL and LNAPL layers as long as both are pure/non-conductive, it will only face an issue if the base of the well is very thick and sticks to the probe which would mask it but you will still get a reading slowly lowering the probe into the DNAPL. You can read the manual HERE
The Solinst Model 122 has an accuracy of 1.0mm. You can read the manual HERE
