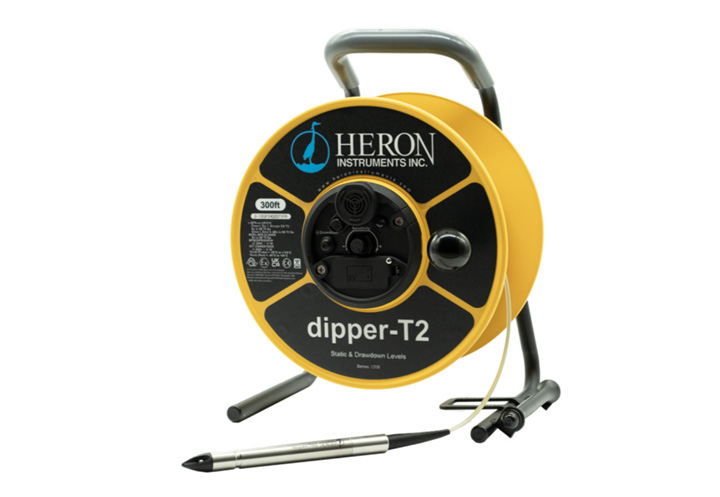

dipper T2 Water Level Meter
- Range of Lengths Available 30 m to 300 m / 100 ft to 1000 ft
- Intrinsically Safe Certified intrinsically safe to ATEx, IECEx, CSA, and UL standards
- PFAS Free PFAS free tape and probe
Overview
The dipper-T2 water level meter, from Heron Instruments, is suitable for measurement of static and falling head levels. Manufactured from high quality, PFAS free materials, the dipper-T2 is rugged and reliable. Featuring an electronic panel with audio / visual signals and a convenient carry handle, the level meter is easy to use in a wide range of applications.
The premium tape is manufactured from yellow polyethylene coated stainless steel and is available in metric and imperial.
The dipper-T2 also benefits from intrinsically safe certification to ATEx, IECEx, CSA, and UL standards.
Manufactured by: Heron Instruments
Model: dipper T2 Water Level Meter
Services offered for this product
- Sales
- Rental
- Installation
- Calibration
- Maintenance
- IoT Cloud Compatible
Specification
| Reel Assembly | Standard | Large |
| Height | 36cm (14") | 43cm (17") |
| Depth | 21cm (9") | 23cm (9") |
| Width | 29cm (11.5") | 34cm (13.5") |
| Weight (Reel Assembly Only) | 2.6kg (5.7lb) | 4.2kg (9.3lbs) |
| Plate Size | 27cm (10.5") | 34cm (13.5") |
| Plate Material | Nylon Fibe Composite | Aluminium |
| Brake | Ergonomic Dial | Ergonomic Dial |
| Stainless Ball Bearing | Yes | Yes |
| Hanger | Included on frame | |
| Tape Guide | Included on frame | Included on frame |
| Ground Lead | Included on frame | Included on frame |
| Tape Lengths | 30m, 100ft 45m, 150ft 60m, 200ft 100m, 300ft |
150m, 500ft 200m, 750ft 300m, 1000ft |
| Tape | ||
| Tape | High Tensile Stainless Steel | |
| Jacketing | Polythylene | |
| Conductors | 7 Strand (4 Stainless Steel & 3 Copper) | |
| Markings | Metric or Engineering Scale - Under Jacketing | |
| Width | 9.5mm (3/8") | |
| Dog Bone Profile | Dogbone for low friction | |
| Break Stregth | 125kg (280lbs) | |
| Accuracy | 3mm/30 meters (1/100th of a foot per 100 feet) | |
| Resolution | Metric 1mm, Imperial 1/100 per ft | |
| Electronic Panel | ||
| Operating Mode | Static and Drawdown | |
| Detects | Water | |
| Filtering | Sensitivity Dial | |
| Operating Temperature | -45 to +55°C | |
| Visual Indicator | Bright Red LED | |
| Audible Indicator | Volume Adjustable Buzzer | |
| Audible Volume | Yes 0-100dbi | |
| Power Source | 9V | |
| Battery Life | Unlimited Standby. | |
| On/Off | Automatic | |
| Durability | IP68 | |
| Removable/replaceable | Yes | |
| Link & Probe | ||
| Link & Probe | Snag free design | |
| Probe Weight | 130g (4.6oz) | |
| Length | 150mm (5.9") | |
| Diameter | 16mm (5/8") | |
| Removable/replaceable | Yes, tool free removal | |
| Depth Rating | 1.5km (5000ft) (150Bar) (2150psi) | |
| Break strain | 70kg (150lbs) | |
| Wetted Materials | Stainless Steel 316, 30% Glass fillled Composite, Polyurethane. | |
| Operating Temperature | -45 to +135 °C | |
| Sensor Accuracy | +/-1mm (+/-0.04") | |
| Detection time | Instantaneous | |
| Certification: dipperT2 is certified to ATEx, IECEx, CSA and UL Standards | ||
| North American | c-QPS-us LR3030 Class I, Division 1, Groups CD, T3 Ex ia IIB T3 Ga Class I, Zone 0, AEx ia IIB T3 Ga |
|
| IECEx | ECEx QPS 23.0008X Ex ia IIB T3 Ga |
|
| ATEX | QPS23ATEX5003X CE 2900 (Ex) II 1 G |
|
| CE | YES | |
| Warranty | ||
| Warranty | 2 years/1 year probe | |
| Included & Optional | ||
| Padded Carry Case | Included | |
