LongLiner Series 4000 Water Level Tape
- Electric Motor Forward/reverse 12 V variable speed motor to effortlessly wind and unwind the tape
- Range of Lengths Available 450 m to 1200 m / 1500 ft 4000 ft
Product Options
Overview

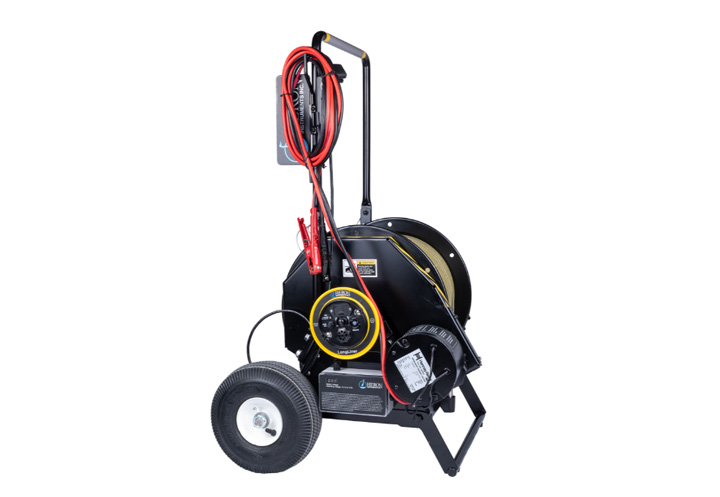

The LongLiner water level meter, from Heron Instruments, is the ideal solution for effortless water level measurements. The electric motor with forward/reverse12V variable speed is ideal for deploying and retracting long tape lengths quickly and easily using the convenient remote control.
The LongLiner is mounted to a rugged, wheeled cart allowing easy transportation in the field. The cart is removable for securing during transportation in vehicles.
Manufactured by: Heron Instruments
Model: LongLiner Series 4000 Water Level Tape
Services offered for this product
- Sales
- Rental
- Installation
- Calibration
- Maintenance
- IoT Cloud Compatible
Specification
| Reel Assembly | |
| Height Extended Handle | 103cm (40.5") |
| Height Collapsed Handle | 57cm (22.5") |
| Depth | 60cm (23.5") |
| Width | 66cm (26") |
| Width With Handle | 81cm (32") |
| Weight (Reel and Cart Only) | 35kg (77lbs) |
| Plate Size | <1000m/3500ft - 42cm (16.5"), > 1000m/3500ft - 46cm (18") |
| Plate Material | Steel, Powder Coated |
| Brake | Spring Loaded |
| Handle | Colapsable |
| Manual Hand Crank Arm | Removable |
| Tape Guide | NA |
| Test Points | See Instructions |
| Tape Lengths | 450m/1500ft, 600m/2000ft, 750m/2500ft, 900m/3000ft, 1000m/3500ft, 1200m/4000ft |
| Tape | |
| Tape | High Tensile Stainless Steel |
| Jacketing | Polyethylene |
| Conductors | 7 strand (4 S/S & 3 copper) |
| Markings | Metric or Engineering Scale - Under Jacketing |
| Width | 9.5mm (3/8") |
| Dog Bone Profile | Yes |
| Break Strength | 127kg (280lbs) |
| Probe | |
| Weight | 158g (.35lb) |
| Length | 17.5cm (7") |
| Diameter | 16mm (5/8") |
| Removable | No |
| Depth Rating | IP68 |
| Break Strain | 68kg (150lbs) |
| Wetted Material | S/S, Buna, Nylon, ABS & Teflon, Polyurethane |
| Electronic Panel | |
| Operating Mode | Static & drawdown |
| Power Source | 9 Volt Alkaline |
| Sensitivity Control | S/S & Aluminium |
| Audio/Visual Indication | Ultra Bright LED & 80dbi Buzzer |
| Rating | IP65 |
| Removable | Yes |
| Maximum Temperature | 80°C |
| Electrical Characteristics | |
| Motor | 12 v DC |
| Power Supply | 12v Automotive Grade (ONLY) |
| Battery Voltage | Displayed on Motor Controller |
| Speed Control | Wind and Rewind |
| Warranty | |
| Warranty | 2 Year (Probe 1 Year) |
