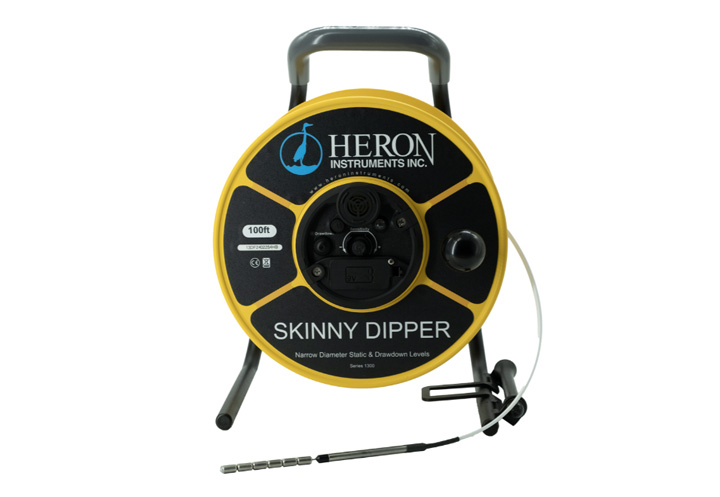

SKINNY DIPPER Narrow Diameter Water Level Meter
- Narrow Diameter Tape and Probe 6.5mm/ 1/4 inch tape and probe for small diameter applications
- Available in a Range of Lengths 30 m to 150 m / 100 ft to 500 ft
- PFAS Free Manufactured with wetted material not known to contain PFAS
Overview
The SKINNY DIPPER has the narrowest diameter of the Heron Instruments product family. At just a 6.5 mm diameter for the tape and probe it is suitable for small diameter wells/standpipes/piezometers. The slimline tape also allows readings while the pump is still in the well.
The SKINNY DIPPER comes with a premium backpack carry case to protect your precision instrument from the elements.
The electronic panel provides visual signals / adjustable volume audio signals and also benefits from a sensitivity dial to tune out cascading water. The vinyl ergonomic handle makes for easy carrying.
Manufactured by: Heron Instruments
Model: SKINNY DIPPER Narrow Diameter Water Level Meter
Services offered for this product
- Sales
- Rental
- Installation
- Calibration
- Maintenance
- IoT Cloud Compatible
Applications
Narrow wells
Boreholes
Standpipes
Tubes
Piezometers
Specification
| Reel Assembly | Standard |
| Height | 36cm (14") |
| Depth | 21cm (9") |
| Width | 29cm (11.5") |
| Weight (Reel Assembly Only) | 2.6kg (5.7lb) |
| Plate Size | 27cm (10.5") |
| Plate Material | Nylon Fibre Composite |
| Brake | Ergonomic Dial |
| Stainless Ball Bearing | Yes |
| Hanger | Included on frame |
| Tape Guide | Included on frame |
| Test Points | Use Conductive Material |
| Tape Lengths | 30m, 100ft 60m, 200ft 100m, 300ft 150m, 500ft |
| Electronic Panel | |
| Operating Mode | Static & Drawdown |
| Power Source | 9 Volt Alkaline |
| Sensitivity Control | S/S & Aluminum |
| Audio/Visual Indication | Ultra Bright LED & 80dbi Buzzer |
| Rating | IP65 |
| Removable | Yes |
| Maximum Temperature | 80°C |
| Tape | |
| Tape | Polyethylene |
| Jacketing | No |
| Conductors | 7 strand S/S |
| Markings | Metric or Engineering Scale |
| Width | 6.35mm (1/4") |
| Dog Bone Profile | No |
| Break Strength | N/A |
| Probe | |
| Weight | 32g (.07lbs) |
| Length | 8.75cm (3.5") |
| Diameter | 6.35mm (1/4") |
| Removable | No |
| Depth Rating | Up to 100m/300ft for 20 min |
| Break Strain | N/A |
| Wetted Material (PFAS Free) | S/S & Delrin |
| Warranty | |
| Warranty | 2 Year (Probe 1 Year) |
| Included | |
| Padded Carry Case | Included |
