Water Tape Series 1900
- Economical The most economical water tape in the Heron Instruments range
- Available in a Range of Lengths Standard lengths available: 30m to 300m / 100ft to 1000ft. Longer lengths available.
- PFAS Free PFAS free tape and probe
Product Options
Overview

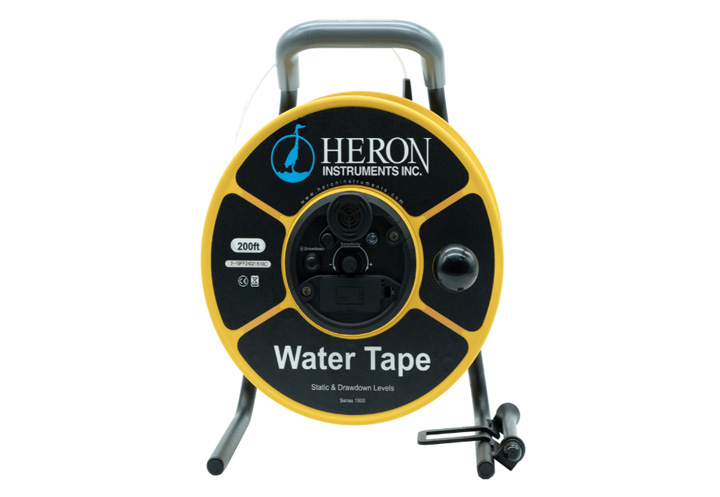

The Heron Instruments Water Tape is an economical, budget friendly, water level meter that does not lack in quality. Its polyethylene tape with heat stamped markings in your choice of metric or imperial scale allows accurate water level readings in a range of applications. Dual function capability allows both static and drawdown level measurement.
The electronic panel provides audio & visual signals and also features a sensitivity dial to tune out cascading water.
Manufactured by: Heron Instruments
Model: Water Tape Series 1900
Services offered for this product
- Sales
- Rental
- Installation
- Calibration
- Maintenance
- IoT Cloud Compatible
Specification
| Reel Assembly | Standard | Large |
| Height | 36cm (14") | 43cm (17") |
| Depth | 21cm (9") | 23cm (9") |
| Width | 29cm (11.5") | 34cm (13.5") |
| Weight (Reel Assembly Only) | 2.6kg (5.7lb) | 4.2kg (9.3lbs) |
| Plate Size | 27cm (10.5") | 34cm (13.5") |
| Plate Material | Nylon Fibe Composite | Aluminium |
| Brake | Ergonomic Dial | Ergonomic Dial |
| Stainless Ball Bearing | Yes | Yes |
| Hanger | Included on frame | Included on frame |
| Tape Guide | Included on frame | Included on frame |
| Tape Lengths | 30m, 100ft 45m, 150ft 60m, 200ft 100m, 300ft 150m, 500ft |
200m, 750ft 300m, 1000ft Ask about lengths up to 5000ft. |
| Tape | ||
| Tape | Polyethylene reinforced with Kevlar | |
| Jacketing | No | |
| Conductors | 7 Strand (4 Stainless Steel & 3 Copper) | |
| Markings | Metric or Engineering Scale - Under Jacketing | |
| Width | 9.5mm (3/8") | |
| Dog Bone Profile | Dogbone for low friction | |
| Break Stregth | 125kg (280lbs) | |
| Accuracy | 3mm/30 meters (1/100th of a foot per 100 feet) | |
| Resolution | Metric 1mm, Imperial 1/100 per ft | |
| Electronic Panel | ||
| Operating Mode | Static and Drawdown | |
| Detects | Water | |
| Operating | -45 to +55°C | |
| Visual Indicator | Bright Red LED | |
| Audible Indicator | Volume Adjustable Buzzer | |
| Audible Volume | Yes 0-100dbi | |
| Power Source | 9V | |
| Battery Life | Unlimited Standby. | |
| On/Off | Automatic | |
| Durability | IP68 | |
| Removable/replaceable | Yes | |
| Link & Probe | ||
| Link & Probe | Snag free design | |
| Probe Weight | 130g (4.6oz) | |
| Length | 150mm (5.9") | |
| Diameter | 16mm (5/8") | |
| Removable/replaceable | Yes, tool free removal | |
| Depth Rating | 1.5km (5000ft) (150Bar) (2150psi) | |
| Break strain | 70kg (150lbs) | |
| Wetted Materials PFAS Free | Stainless Steel 316, 30% Glass filled Delrin On/Off Composite, Polyurethane.Gold | |
| Operating Temperature | -45 to +135 °C | |
| Sensor Accuracy | +/-1mm (+/-0.04") | |
| Detection time | Instantaneous | |
| Warranty | ||
| Warranty | 2 years/1 year probe | |
| Included & Optional | ||
| Padded Carry Case | Included | |
