SITRANS LH300 Pressure Transmitter

Easy to Install Optional cable hanger and junction box are available as accessories
IP68 Degree of Protection

Product Options

Quantity Required Date Notes about your application

Overview

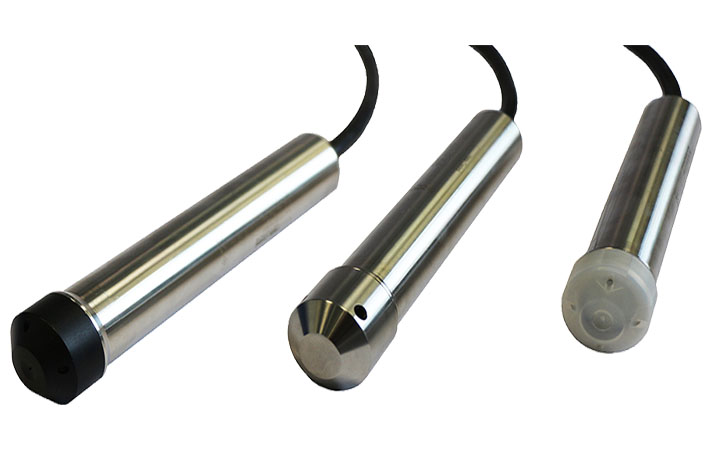

The SITRANS LH300 pressure transmitter is a submersible sensor for measuring hydrostatic level. It comes in a variety of measurement ranges to suit the application and explosion protection can be added. For easy installation, a cable hanger and junction box are available as accessories.

The LH300 provides reliable readings with a small error in measurement (0.15% typical).

Manufactured by: Siemens-Milltronics
Model: SITRANS LH300 Pressure Transmitter

Services offered for this product

Sales
Rental
Installation
Calibration
Maintenance

Applications

Water/waste water supply
Drinking water facilities
For use in unpressurized/open vessels and wells
Desalination plants
Shipbuilding

Specification

Mode of operation
Measuring principle	piezo-resistive
Input
Measured variable	Hydrostatic level
Measuring range	Max. permissible operating pressure
0 ... 1 mH₂O (0 ... 3 ftH₂O) 0 ... 2 mH₂O (0 ... 6 ftH₂O) 0 ... 3 mH₂O (0 ... 9 ftH₂O) 0 ... 4 mH₂O (0 ... 12 ftH₂O) 0 ... 5 mH₂O (0 ... 15 ftH₂O) ... 6 mH₂O (0 ... 18 ftH₂O) 0 ... 10 mH₂O (0 ... 30 ftH₂O) 0 ... 20 mH₂O (0 ... 60 ftH₂O) 0 ... 40 mH₂O (0 ... 120 ftH₂O) Special measuring ranges Up to 100 mH₂O (300 ftH₂O) Up to 160 mH₂O (480 ftH₂O) Measuring range 0 ... 0.1 bar 0 ... 0.2 bar 0 ... 0.3 bar 0 ... 0.4 bar 0 ... 0.5 bar 0 ... 0.6 bar 0 ... 1 bar 0 ... 2 bar 0 ... 4 bar Special measuring ranges Up to 10 bar Up to 16 bar	1.5 bar (21.8 psi) (corresponds to 15 mH₂O (45 ftH₂O)) 1.5 bar (21.8 psi) (corresponds to 15 mH₂O (45 ftH₂O)) 1.5 bar (21.8 psi) (corresponds to 15 mH₂O (45 ftH₂O)) 2 bar (29 psi) (corresponds to 20 mH₂O (60 ftH₂O)) 2 bar (29 psi) (corresponds to 20 mH₂O (60 ftH₂O)) bar (29 psi) (corresponds to 20 mH₂O (60 ftH₂O)) 2 bar (29 psi) (corresponds to 20 mH₂O (60 ftH₂O)) 5 bar (72.5 psi) (corresponds to 50 mH₂O (150 ftH₂O)) 10 bar (145 psi) (corresponds to 100 mH₂O (300 ftH₂O)) 20 bar (290 psi) (corresponds to 200 mH₂O (600 ftH₂O)) 20 bar (290 psi) (corresponds to 200 mH₂O (600 ftH₂O))> 24 bar (348 psi) (corresponds to 240 mH₂O (720 ftH₂O)) 1.5 bar 1.5 bar 1.5 bar 2 bar 2 bar 2 bar 5 bar 10 bar 20 bar 20 bar 24 bar
Output
Output signal	4 ... 20 mA
Measuring accuracy	According to IEC 60770-1
Error in measurement at limit setting including hysteresis and reproducibility	≤ 0.15 % of upper range value (typical) ≤ 0.3 % of upper range value (maximum)
Long-term stability	≤ 0.15 % of upper range value/year (zero and span)
Operating conditions
Ambient conditions Process temperature Storage temperature	-10 ... +80 °C (14 ... 176 °F) -20 ... +80 °C (-4 ... +176 °F
Degree of protection according to IEC 60529	IP68
Design
Weight (pressure transmitter)	≈ 0.4 kg ( ≈ 0.88 lb)
Weight (cable)	0.08 kg/m (≈ 0.059 lb/ft)
Maximal freely suspended length	300 m (990 ft)
Electrical connection	Cable with 2 conductors, vent pipe and integrated humidity filters
Material (Seal diaphragm)	Al2O3 ceramic, 99.6 %
Material (Enclosure)	Stainless steel, mat. no. 1.4404/316L and 1.4539/904L (sea water applications) respectively
Material (Gasket)	FPM (standard) EPDM (optional)
Material (Connecting cable)	PE (standard/drinking water applications) FEP (for aggressive media)
Material (Cap)	Stainless steel, PPE or ETFE
Auxiliary Power
Terminal voltage on pressure transmitter U_B	10 ... 33 V DC for transmitter without explosion protection 10 ... 30 V DC for transmitter with intrinsic safety explosion protection
Auxiliary power
Terminal voltage on pressure transmitter UB	10 ... 33 V DC 10 ... 30 V DC for transmitter with intrinsic safety explosion protection
Certificates and approvals
Drinking water approval (ACS)	17 ACC NY 055
EAC	TC N RU ?-DE.??02.B.05092
Underwriters Laboratories (UL)	ML File No. E344532, issued 2017-08-17
Shipbuilding approval (LR)	LR_18/20074
Shipbuilding approval (DNV/GL)	TAA00000CE
Shipbuilding approval (BV)	56926/A0 BV
Shipbuilding approval (ABS)	HG1881314_P
Shipbuilding approval (RINA)	ELE067319XG
Pressure equipment directive	The transmitter is not subject to the pressure equipment directive (PED 2014/68/EU)
Explosion protection
ATEX	SEV 16 ATEX 0121
IEC Ex	IEC Ex SEV 16.0003
EAC Ex	TC RU C-DE.AA87.B.00324
Intrinsic safety "i" - Marking	II 1 G Ex ia IIC T4 Ga
