LevelRay Radar Level Sensor
- Non-Contact Radar Level Measurement Specifically for designed for water and wastewater applications

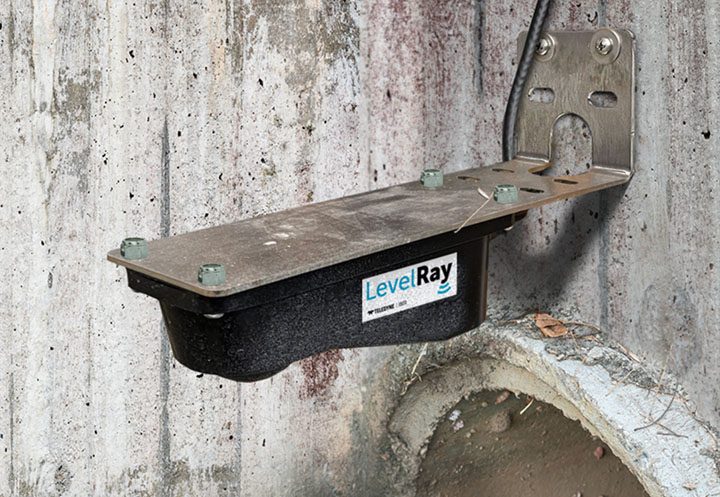

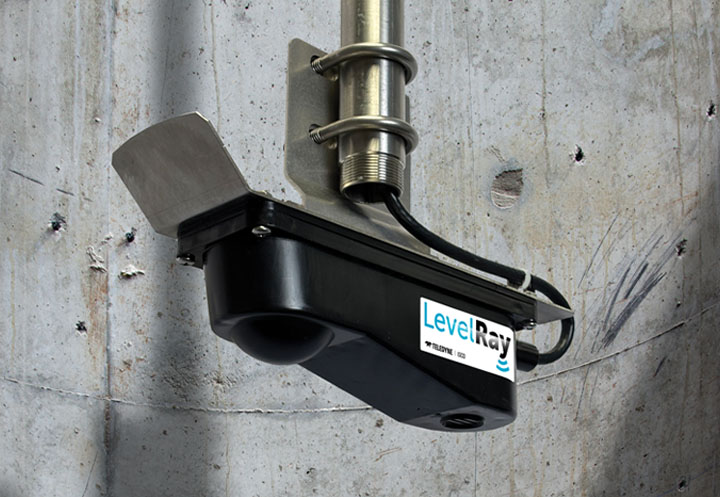

- Range of Mounting Options Choose the best option for your application
Overview

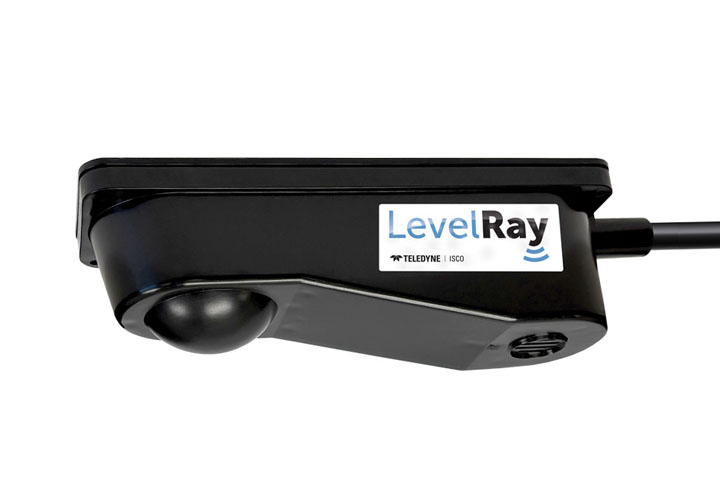

Teledyne ISCO’s LevelRay is a non-contact radar level sensor that uses FMCW (Frequency Modulated Continuous Wave) technology to measure liquid levels. Installed above the flow, it emits a linearly swept-frequency radar signal toward the liquid surface and receives the reflected signal. The small time difference between the transmitted and received signals generates a beat frequency that is directly related to distance, enabling precise level measurement. Because it operates without direct contact, the sensor reduces maintenance needs and delivers reliable performance in challenging conditions involving chemicals, grease, silt, or suspended solids.
Manufactured by: Teledyne ISCO
Model: LevelRay Radar Level Sensor
Services offered for this product
- Sales
- Rental
- Installation
- Calibration
- Maintenance
- IoT Cloud Compatible
Applications
Flow and level measurement in wastewater
collection systems
CSO (Combined Sewer Overflow) studies
SSO (Sanitary Sewer Overflow) studies
Industrial discharge flow measurement
Specification
| LevelRay Level Sensor Specifications | |
| Technology | FMCW Radar |
| Measurement Range | 0 to 26’ (0–8 m) |
| Accuracy from Sensor Face at 72 °F (22 °C) | ±0.08” ±2 mm |
| Beam Angle | ≤8° 4° From center line |
| Radar Signal | 60 GHz |
| Bluetooth™ | 2.4 GHz |
| Deadband | Zero deadband |
| Size (H x W x D) | 2.5 x 2.38 x 8.5 in 6.35 x 6 x 21.6 cm |
| Weight | 2.3 lbs. (1.0 kg) for 33 ft (10 m) w/o connector 4.5 lbs. (2.0 kg) for 75 ft (23 m) w/o connector 5.7 lbs. (2.6 kg) for 99 ft (30) m w/o connector |
| Material | HDPE |
| Cable Lengths | 33, 75, 99 ft (10, 23 or 30 m) |
| Enclosure | IP68 |
| Certifications | CE/UL/CSA/UKCA/RoHS FCC 47 CFR Part 15 ETSI EN 302 729 |
| Temperature Range | Operating: -4–160 °F (-20–60 °C) |
| Storage | -40–176 °F (-40–80 °C) |
| Power Required | 9–27 Vdc |
| Communication Protocol | TIENet, Modbus RS485 |
| Optional Surcharge Measurement | |
| Technology | Pressure Transducer |
| Material | Stainless Steel |
| Certification | CE EN61326 |
| Temperature Range | -4–140 °F (-20–60 °C) |
| Measurement Range | 0–33 ft (0–10 m) |
| Accuracy | ±0.10% of full scale |
| Stability | ±0.023 ft/yr (0.007 m) |
