Siemens HydroRanger Plus (Discontinued)
- Easily Customised To Meet Specific Application Needs Enables measurement in a multitude of applications from flow rate in a narrow flume to volume in a ferric chloride storage bank
- Optional Submergence Sheilds Ensures consistent operation in wet wells where transducers are likely to be submerged ensuring accuracy
Overview
PRODUCT DISCONTINUED- REPLACED BY THE HydroRanger 200 .
The Siemens HydroRanger Plus is an ultrasonic level transmitter for control of wet wells and reservoir pump operations, differential control, and open channel flow monitoring, using energy-saving algorithms.
The HydroRanger Plus is effective in wet wells, weirs and flumes where foam and turbulence are typical operating conditions. It can be customized to meet your specific application needs from measuring flow rate in a narrow flume to volume in a ferric chloride storage bank.

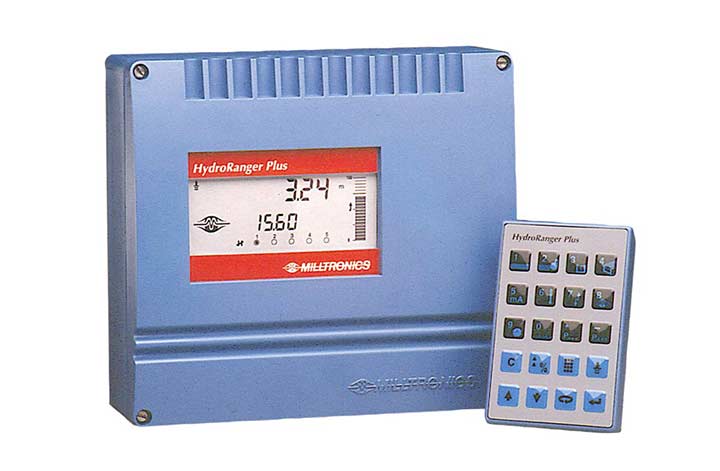

The ultrasonic level transmitter consists of the electronics housed in a wall-mounted enclosure and a hermetically sealed, corrosion-resistant Echomax transducer. These components can be separated by up to 365 m (1200 ft).
Optional submergence shields ensure consistent operation in wet wells where the transducer may be submerged during flooding from rainfall or a power outage. Milltronics patented detection software can differentiate between a submerged condition and a high level.
- Outputs for alarms, chart recorders, controllers and integration of existing systems
- Monitors wetwells, weirs and flumes
- Energy saving function with built-in real-time clock
- Special control mode to reduce grease rings and other deposits
- Integral temperature compensation
- Pump performance monitoring
- Energy management
- System monitoring and network analysis
Manufactured by: Siemens-Milltronics
Model: Siemens HydroRanger Plus (Discontinued)
Services offered for this product
- Sales
- Rental
- Installation
- Calibration
- Maintenance
Applications
Wet wells & Pump Control
Flumes and weirs
Specification
| Mode of Operation | |
| Measuring Principle | Ultrasonic level measurement |
| Measuring Range | 0.3 ... 15 m (1 ... 50 ft) |
| Measuring Points | 1 or 2 |
| Output | |
| Ultrasonic Transducer | 44 kHz |
| Relays | 5 alarm/control relays, 1 SPDT Form C per relay, rated 5 A at 250 V AC, resistive load |
| mA Output | 0/4 ... 20 mA, optically isolated |
| - Max. Load | 1 kΩ |
| - Resolution | 0.1 % of 20 mA |
| Accuracy | |
| Error in Measurement | 0.25% of range or 6 mm (0.24"), whichever is greater |
| Resolution | 0.1% of measuring range or 2 mm (0.08"), whichever is greater1) |
| Temperature Compensation | -50 ... +150 °C (-58 ... +302°F) - Integral temperature sensor - External TS-3 temperature sensor (optional) - Programmable fixed temperature |
| Rated Operating Conditions - Ambient Conditions | |
| Ambient Temperature for Enclosure | -20 ... +50 °C (-4 ... +122 °F) |
| Design | |
| Rack Mount | DIN 3 HU/14 pitch, 4 rail plug-in unit suitable for standard 84 pitch (19") rack |
| Panel Mount | Suitable for standard panel cutout DIN 43700, 72 x 144 mm, 100 mm center height |
| Degree of Protection (wall mount) | IP65/NEMA 4X/Type 4X |
| Weight (rack and panel mount) | 0.87 kg (1.9 lbs) |
| Weight (wall mount) | 1.5 kg (3.3 lbs) |
| Material (enclosure) | Polyester/polycarbonate alloy |
| Electrical Connection | Commercially available copper conductor according to local requirements, rated 250 V/5 A |
| Ultrasonic Transducer Cable Extension | RG 62-A/U coaxial cable with low capacitance |
| mA Output Signal | 2-core copper conductor, twisted, shielded, 0.5 ... 0.75 mm2 (22 ... 18 AWG), Belden 8760 or equivalent is acceptable |
| Power Supply | 100/115/200/230 V AC, ±15%, 50/60 Hz, 15 VA and/or 9 ... 30 V DC, 8 W |
| Ultrasonic Transducer | Compatible transducers: ST-H and Echomax series XPS-10/10F, XPS 15/15F, XCT-8, XCT-12 and XRS-5 |
| Display and Controls | |
| Rack and Panel Mount | 75 x 20 mm (3 x 0.8") LCD (selectable backlighting) |
| Wall Mount | 100 x 40 mm (4 x 1.5") multifield LCD, backlit |
| Programming | Removable programmer or optional Dolphin Plus |
| Memory | EEPROM (non-volatile), no backup battery required |
| Certificates and Approvals | CE2), FM, CSAUS/C, C-TICK |
| 1)The measuring range corresponds to the distance from the zero point to the sensor face, plus any range extension. 2)EMC certificate available on request |
|
