PME miniPAR Logger

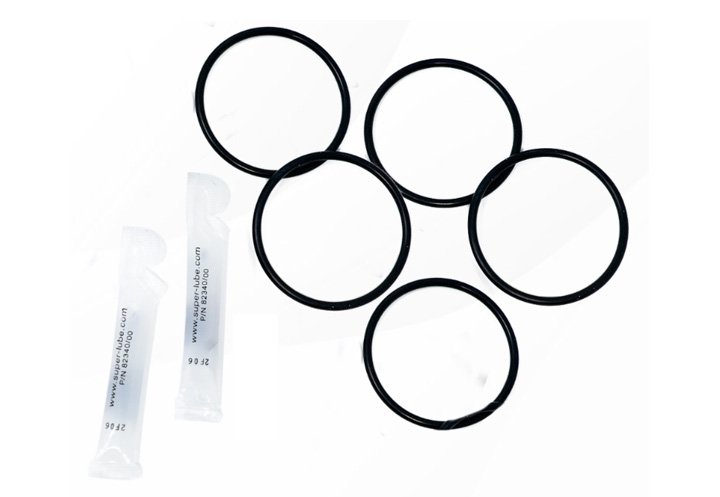

- Optional Anti-Fouling Accessories Wiper and anti-fouling kit available
Overview

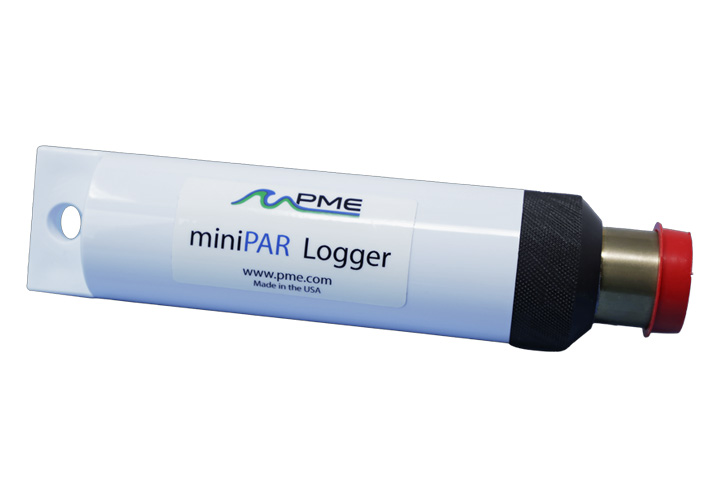

The miniPAR Logger from PME, is fully submersible up to 100 meters and measures diffused sunlight through water, or PAR (Photosynthetically Active Radiation) and temperature in fresh and saltwater environments. The miniPAR Logger also contains a tilt sensor which confirms the logger is correctly positioned for accurate data collection.
The internal SD card stores all recorded data. The miniPAR logger is powered by two user-replaceable standard AA batteries. It also contains a backup coin-cell battery.
Manufactured by: PME
Model: PME miniPAR Logger
Services offered for this product
- Sales
- Rental
- Installation
- Calibration
- Maintenance
- IoT Cloud Compatible
Applications
Freshwater
Saltwater
Specification
| Sensor Type | PAR (LI-COR), Temperature |
| Sensor | LI-192 (LI-COR) |
| Measurement Range | 0-3000 µmol s-1 m-2 |
| Accuracy | ± 5% in air traceable to NIST |
| Sensitivity | Typically 4 µA per 1,000 µmol s-1 m-2 in water |
| Response Time | 10 µs |
| Stability/Drift | <± 2% |
| Operating Temperature Range | 0 to 35°C |
| Sampling Power Capacity | >50,000 samples over 12 months @ 10 minute sample interval |
| Memory | Unlimited |
| Logging Interval | 5 seconds to 24 hours |
| Battery | Two lithium AA batteries and backup coin-cell battery |
| Software Included | Data visualization and control |
| Weight | 1.1 lbs |
| Dimensions | 1.95 inches diameter x 8.5 inches length |
| Maximum Depth | 100 meters (328 feet) |
| Temperature Accuracy | 0.2°C |
| Temperature Range | 0 to 35°C |
