SITRANS FMS500 Electromagnetic Flow Meter
- MCERTS Certified System Combine with the FMT520 for a complete MCERTS certified flow meter system
- Choice of Liners to Suit the Application EPDM for drinking water applications and NBR for water and wastewater applications
Overview
The brand new SITRANS FMS500 from Siemens is an electromagnetic flow meter designed for volume flow measurement of conductive liquids. The FMS500 is available with a choice of linings; an EPDM liner for drinking water applications requiring special approvals and NBR liner for general water/wastewater applications.
The FMS500 has no moving parts and can withstand constant flooding and direct burial, due to its rugged, fully welded design. This also allows it to stand up to a wide range of harsh chemicals found in water-based applications in many different industries.
High accuracy readings can be achieved in low flow conditions up to velocities of 10 m/s,

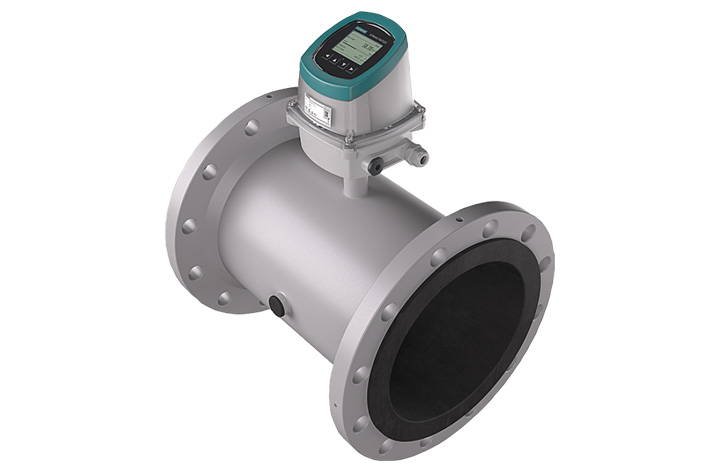

Combine with the SITRANS FMT020 transmitter for a complete flow meter system ideal for use in almost any water application. The transmitter is available in integral/compact or remote mount options.
Manufactured by: Siemens-Milltronics
Model: SITRANS FMS500 Electromagnetic Flow Meter
Services offered for this product
- Sales
- Rental
- Installation
- Calibration
- Maintenance
- IoT Cloud Compatible
Applications
Water abstraction
Water distribution network
General-purpose water
Groundwater
Potable water
Cooling water
Wastewater
Sewage
Sludge
Specification
| Product characteristic | For demanding applications in the water & wastewater industry | |
| Measurement of | Volume flow, flow velocity, electrical conductivity | |
| Nominal diameter |
|
|
| Mode of operation | ||
| Measuring principle | Electromagnetic induction | |
| Medium conductivity | Liquids with an electrical conductivity ≥ 5 µS/cm. | |
| Excitation frequency (mains supply: 50 Hz / 60 Hz) |
|
|
| Process connection - Flanges 1) | ||
| EN 1092-1 | PN 10 (145 psi) Flat face DN 200 ... 300 (8" ... 12") PN 10 (145 psi) Raised face DN 350 ... 1200 (14" ... 48") PN 16 (232 psi) Flat face DN 50 ... 300 (2" ... 12") PN 16 (232 psi) Raised face DN 350 ... 1200 (14" ... 48") PN 40 (580 psi) Flat face DN 15 ... 40 (½" ... 1½") |
|
| ANSI B16.5 | Class 150 Flat face ½" ... 12" Class 150 Raised face 14" ... 24" |
|
| AWWA C-207 | Class D Flat face 28 ... 48" | |
| AS/NZS 4087 | PN 16 (232 psi) Flat Face DN 50 ... 300 (2" ... 12") PN 16 (232 psi) Raised face DN 350 ... 1200 (14" ... 48") |
|
| JIS B 2220:2004 | 10K DN 15 ... 600 (1" ... 24") | |
| Rated operating conditions | ||
| Ambient temperature (sensor) | -20 ... +70 °C (-40 ... +158 °F) | |
| Ambient temperature (Compact with transmitter) | -20 ... +65 °C (-40 ... +149 °F) | |
| Operating pressure (abs) (maximum operating pressure depending on flange type) |
DN 15 ... 40 (1/2" ... 1 1/2"): 0.01 ... 40 bar (0.15 ... 580 psi) DN 50 ... 300 (2" ... 12"): 0.03 ... 20 bar (0.44 ... 290 psi) DN 350 ... 1200 (14" ... 48"): 0.01 ... 16 bar (0.15 ... 232 psi) |
|
| Protection class (standard) | IP66/67, NEMA 4X/6 | |
| Protection class (optional) | IP68 and NEMA 6P (2m, 10 days) for sensor in remote design IP68 and NEMA 6P (10m, continuously) for sensor in remote design |
|
Mechanical load (vibration)
|
Vibration, sinusoidal according to IEC 60068-2-6
Vibration broad-band random, according to IEC 60068-2-64
|
|
Mechanical load (vibration)
|
Vibration, sinusoidal according to IEC 60068-2-6 | |
Sensor
|
Transmitter
|
|
| Vibration broad-band random, according to IEC 60068-2 64 | ||
Sensor
|
Transmitter
|
|
| Process temperature | ||
| NBR liner | -10 ... +70 °C (14 ... 158 °F) | |
| EPDM liner | -10 ... +70 °C (14 ... 158 °F) | |
| Pressure drop | DN 15 and 25 (½" and 1"): Max. 20 mbar (0.29 psi) at 1 m/s (3 ft/s) DN 40 ... 300 (1½" ... 12"): Max. 25 mbar (0.36 psi) at 3 m/s (10 ft/s) DN 350 ... 1200 (14" ... 48"): Insignificant |
|
| Test pressure | 1.5 × PN (where applicable) | |
| Design | ||
| Dimensions | See dimensional drawings | |
| Weight | See dimensional drawings | |
| Material - Housing and Flanges | Carbon steel ASTM A 105 with corrosion resistant coating of class C4 or C5 (durability up to 15 years) EN ISO 12944 |
|
| Material - Measuring electrode | Hastelloy C276 / 2.4819 | |
| Material - Grounding electrode | Hastelloy C276 / 2.4819 | |
| Material - Measuring pipe 2) | Stainless steel AISI 304 / 1.4301 | |
| Material - Terminal box | Polycarbonate | |
| Cable entries | 4 x metric thread (size M20 x 1.5) | |
| Pressure equipment | Conforming with 97/23 EC | |
| Electromagnetic compatibility | Conforming with 2004/108/EC | |
| Calibration | ||
| Standard | Zero-point, 2 × 25 % and 2 × 90 % | |
| Optional |
|
|
| Certificates and approvals | ||
| General purpose |
|
|
| Drinking water |
|
|
| Others |
|
|
1) DN 750, DN 1050 and DN 1100 (30", 42" and 44") not available with EN 1092-1 (PN 10 and PN 16) and AS 4087 flanges
2) DN > 300 (12")
