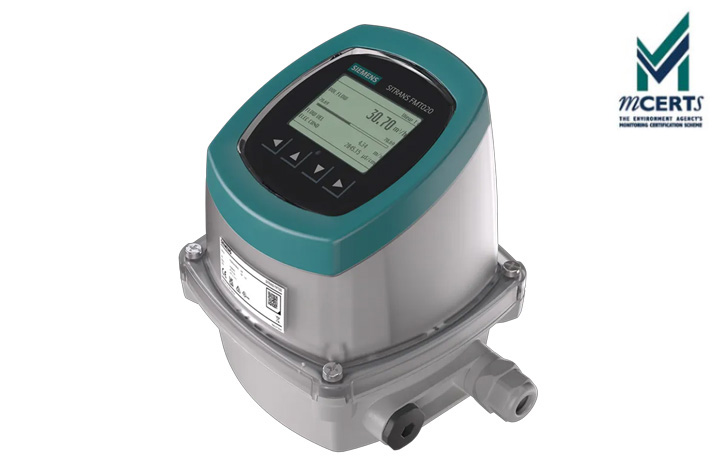

SITRANS FMT020 Transmitter

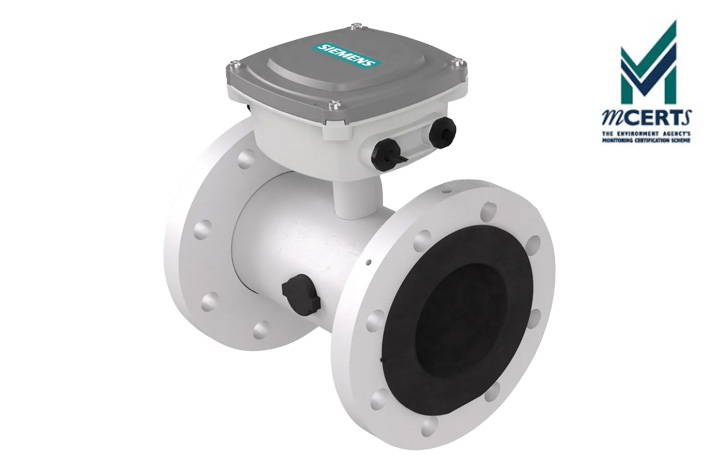

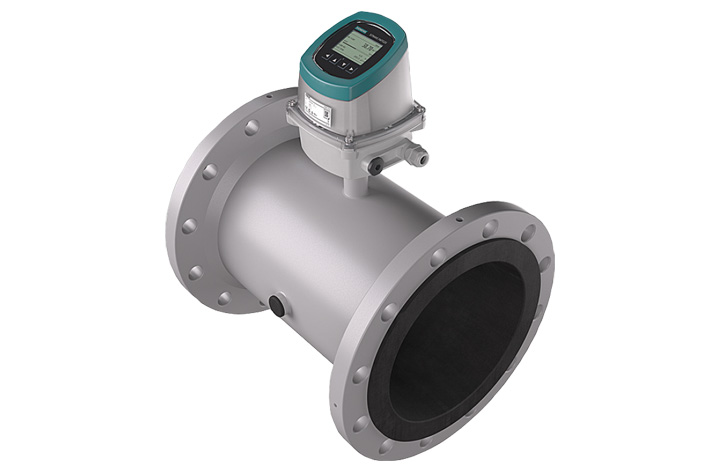

- MCERTS Certified System Combine with the FMS500 for a complete MCERTS certified flow meter system
- Backward Compatible with Existing Sensors Use with MAG5100Ws up to 15 years old
- Next Generation Successor Builds on the advantages of the MAG5000/6000
- Three Totalisers Forward, reverse, and net flow totalisers
Overview
The new SITRANS FMT020 magnetic flow meter transmitter is a high-performance, durable, and intelligent solution, designed to deliver accurate and reliable flow measurement for conductive fluids across a wide range of process applications.
As the next-generation successor to the well-established MAG 5000 and MAG 6000 transmitter series, the FMT020 retains all the key features of its predecessors. This includes a flexible installation concept with a common housing, allowing for both compact and remote mounting options. Additionally, its modular design facilitates easy replacement of the transmitter, as well as the addition of communication modules or the Sensorprom memory unit for quick commissioning, immediate measurements, and data storage.
The FMT020 also offers advanced capabilities, including the simultaneous measurement of volumetric flow, flow velocity, and electrical conductivity. Enhanced diagnostic features, such as empty pipe monitoring and self-check functionality, are included, along with multi-functional input/output channels for process control and a unified operating concept, among other valuable features.
Manufactured by: Siemens-Milltronics
Model: SITRANS FMT020 Transmitter
Services offered for this product
- Sales
- Rental
- Installation
- Calibration
- Maintenance
- IoT Cloud Compatible
Specification
| Mode of operation | |
| Measuring principle | Electromagnetic with pulsed constant field |
| Empty pipe | Detection of empty pipe (electrode cable special type required in remote mounted installation) |
| Excitation frequency | Depends on the sensor size, please refer to “Technical specifications” for SITRANS FM sensors |
| Electrode input impedance | > 1 × 1014 Ω |
| Current output (active/passive) | |
| Signal range | 0 ... 20 mA or 4 ... 20 mA Signal levels compliant with NAMUR NE 43 (3.8 to 20.5 mA) |
| Load | < 470 Ω |
| Resolution | < 1 µA |
| Accuracy | ±20 µA |
| Temperature coefficient | < 50 ppm/K |
| Time constant | 0.1 … 100 s, adjustable |
| Digital output (active/passive) | |
| Frequency | 0 … 10 kHz, 50 % duty cycle (uni/bidirectional) |
| Pulse | 40 µs … 5 s pulse duration |
| Rating - Active operation mode |
24 V DC, 30 mA, 1 kΩ ≤Ri ≤10 kΩ, short-circuit protected (powered from transmitter) |
| Rating - Passive operation mode | 3 … 30 V DC, max. 110 mA, 200 Ω ≤Ri ≤10 kΩ (powered from connected supply) |
| Time constant | 0.1 … 100 s, adjustable |
| Relay output (passive) | |
| Type | SPDT Form C relay, potential-free change-over contacts, resistive load |
| Rating | 2 A at 42 V AC, 1 A at 24 V DC |
| Durability | 50 000 operations min. per relay |
| Rated operating conditions - Installation environment | |
| Location | Indoor/outdoor (altitude up to 2000 m) |
| Installation (overvoltage) category | II |
| Pollution degree | 2 |
| Rated operating conditions - Ambient temperature | |
| Transmitter | -40 ... +65 °C (-40 ... +149 °F) (max. humidity 98% RH) |
| Display | -20 ... +60 °C (-4 ... +140 °F) |
| Rated operating conditions - Storage temperature | |
| Transmitter | -40 ... +80 °C (-58 ... +158 °F) (max. humidity 98% RH) |
| Display | -40 ... +80 °C (-40 ... +176 °F) |
| Design - Enclosure | |
| Material | Polycarbonate |
| Degree of protection | IP66/67, NEMA 4X/6 |
| Mechanical load - Integral mount / compact version | Vibration, sinusoidal according to IEC 60068-2-6
|
| Mechanical load - Remote version | Vibration, sinusoidal according to IEC 60068-2-6
|
| EMC performance | IEC/EN 61326-1, EN 55011 (Class A) |
| Dimensions | See dimensional drawings |
| Weight | See dimensional drawings |
| Display and Control | |
| LCD Display | 60 × 40 mm (2.36 × 1.57 inch) LCD, 240 × 160 pixels resolution |
| Menu Navigation | 4 capacitive touch keys |
| Update Time | Less than 1 second |
| Totalizers | 3 × 14-digit counters for forward, net, or reverse flow |
| Memory Card | Integrated Micro-SD interface supporting memory cards up to 32 GB storage capacity |
| Power Supply | |
| AC version | 100 ... 240 V AC, 50/60 Hz, 25 VA |
| DC version | 24 V DC ±20%, 12 W |
| Power consumption | |
| AC version | 6.24 W |
| DC version | 6.45 W |
| Communication | |
| Webserver | Web-based interface for local programming via web browser (only with PROFINET, EtherNet/IP communication) |
| Fieldbus |
|
| Remote configuration |
|
| Certificates and approvals | |
| General purpose | CE (LVD, EMC, RoHS), UKCA UL, CSA certified per standard EN / IEC 61010-1 |
| Others | Environmental Product Declaration (EPD) EAC (Kazakhstan) |
