Solinst Model 301 Water Level Temperature Sensor
- Absolute or Vented Pressure Sensor
- Easy Integration Modbus and SDI-12 for easy integration with Scada or PLC systems
- Available in Six Pressure Ranges 5m , 10 m, 20 m, 30 m, 100 m and 200 m
Overview

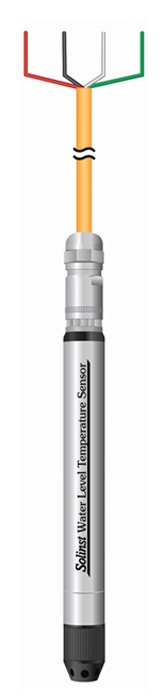

The Solinst Model 301 Water Level Temperature Sensor is a compact and versatile hydrostatic level transmitter that delivers precise and continuous water level and temperature measurements. Housed in a slim, durable 316L stainless steel casing (22 mm x 192 mm or 7/8" x 7.55"), this all-in-one submersible sensor is equipped with a water level pressure sensor and a temperature sensor.
To ensure reliable performance, the sensor features double O-ring seals that prevent leaks and a Faraday cage design that protects against power surges and lightning. The probe includes a removable nose cone for optional use of the 1/4" NPTM threaded connection. The water level pressure sensor offers exceptional accuracy of 0.05% FS, with readings automatically compensated for temperature variations.
Users can select from six pressure ranges (5-200 m) and choose between absolute and gauged (vented) pressure sensor configurations, tailoring the sensor to specific project requirements. The 301 Water Level Temperature Sensor is compatible with digital protocols such as Modbus and SDI-12, making integration into existing SCADA or PLC systems seamless.
Manufactured by: Solinst
Model: Solinst Model 301 Water Level Temperature Sensor
Services offered for this product
- Sales
- Rental
- Installation
- Calibration
- Maintenance
Applications
Groundwater, wells
Rivers, canals, lakes, reservoirs, seawater, etc.
Drinking water
Wastewater
Industrial and marine tanks and vessels
Stormwater structures
Landfill and other contaminated outflows
Specification
| Water Level Temperature Sensor Specifications | |
| Level Sensor | Piezoresistive Silicon with Hastelloy® sensor (Absolute or Gauged) |
| Ranges | M5, M10, M20, M30, M100, M200 (meters) |
| Accuracy | ±0.05% FS Typical |
| Resolution | 0.0006% FS |
| Normalization | Automatic Temperature Compensation |
| Temp. Comp. Range | 0°C to 50°C |
| Temperature Sensor | Platinum Resistance Temperature Detector (RTD) |
| Operating Temperature | -20°C to 80°C |
| Temp. Sensor Accuracy | ±0.05°C |
| Temp. Sensor Resolution | 0.003°C |
| Response Time | 1~2 minutes |
| Communication | Digital communications – Modbus and SDI-12 |
| Interface Connector | 4-Conductor |
| Power Consumption | Max 2mA in idle, 10mA while reading sensor |
| Size | 22 mm x 192 mm (7/8" x 7.55") |
| Weight | 173 grams (6.1 ounces) |
| Communication Cable Specifications | |
| Wetted Materials | Polyurethane, Nickel plated Brass, Viton |
| Diameter | Cable: 8 mm (0.32") Connector: 20 mm (0.79") |
| Lengths | Up to 300 m |
| Max. Bend Radius | 25 mm (1") |
| Operating Temperature | -20°C to 80°C |
| Vent Tube Moisture Protection | Built-in hydrophobic filters at sensor connection and plug at surface |
